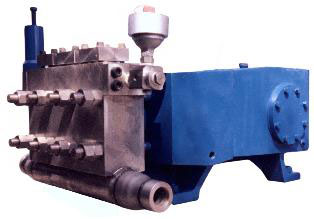

High Pressure Triplex Pumps

Since our inception, we have been successfully manufacturing and exporting a wide gamut of Industrial High Pressure Triplex Pumps, which are available in various standards. These pumps are fabricated with high grade raw material and are thus in adherence to the quality standards of the industry. The entire range is also available on customization, so that we can meet the varied requirements of the clients.

Item code: Model-20T

Available in 100 RPM to 600 RPM, our Model 20T High Pressure Triplex Pumps have been appreciated in the market. We are offering various plunger diameters from 10 to 35 under the category and pressure ranging from 620 kg/ cm2 to 50 kg/cm2.

Model Plunger Diameter Pressure Kg/cm2 Capacity Liter/Hour

RPM 100 RPM 200 RPM 300 RPM 400 RPM 500 RPM 600
20T-62-10 10 620 26 53 80 107 134 161
20T-27-15 15 270 60 120 181 241 302 362
20T-15-20 20 150 107 214 322 429 537 644
20T-10-25 25 100 167 335 503 671 839 1007
20T-07-30 30 70 241 483 725 966 1208 1450

Item Code: Model-30T

We offer an extensive range of Model 30T, which is a widely appreciated range of High Pressure Triplex Pumps. These are fabricated with high quality of raw material under strict quality control system. To provide maximum satisfaction to our clients, we can also provide customized range to our clients.

Triplex Plunger Pumps
Model Plunger Diameter Pressure Kg/cm2 Capacity Liter/Hour

RPM 100 RPM 200 RPM 300 RPM 400 RPM 500 RPM 600
30T-62-10 10 620 40 80 120 161 201 241
30T-27-15 15 270 90 181 271 362 453 543
30T-15-20 20 150 161 322 483 644 805 966
30T-10-25 25 100 251 503 755 1007 1259 1510
30T-07-030 30 70 362 725 1087 1450 1813 2175
30T-05-35 35 50 493 987 1480 1974 2467 2961
30T-04-40 40 40 644 1289 1933 2578 3223 3867
30T-03-45 45 31 800 1597 2396 3195 3994 4792

Item Code: Model-40T

We are manufacturing and exporting a wide assortment of High Pressure Triplex Pumps (Model 40T), which is available in 10 to 40 plunger diameter and pressure capacities ranging from 620 to 40 respectively.

Model Plunger Diameter Pressure Kg/cm2 Capacity Liter/Hour

RPM 100 RPM 200 RPM 300 RPM 400 RPM 500 RPM 600
40T-62-10 10 620 53 107 161 214 288 322
40T-27-15 15 270 120 141 362 483 604 725
40T-15-20 20 150 214 429 644 859 1074 1289
40T-10-25 25 100 335 671 1007 1343 1678 2014
40T-07-30 30 70 483 965 1450 1933 2417 2900
40T-05-35 35 50 658 1316 1971 2632 3290 3948
40T-04-40 40 40 859 1719 2578 3438 4297 5157

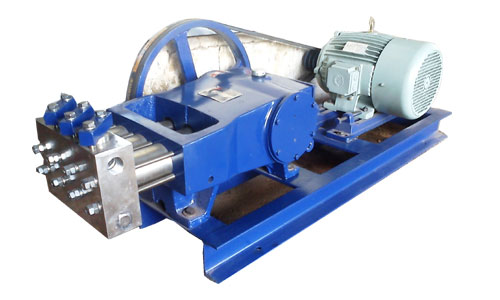

Item Code: Model-55T

Our company offer Model 55T, which is widely used model of High Pressure Triplex Pumps. These are effective and provide optimum satisfaction to our clients. Apart from the standards specifications, we can customize the pumps to suit the requirements of the client.

Model Plunger Diameter Pressure Kg/cm2 Capacity Liter/Hour

RPM 100 RPM 200 RPM 300 RPM 400 RPM 500 RPM 600
55T-109-10 10 1090 74 148 222 295 369 443
55T-48-15 15 485 166 332 499 665 831 997
55T-27-20 20 270 294 591 886 1182 1477 1773
55T-17-25 25 175 462 923 1385 1847 2308 2770
55T-12-30 30 120 665 1329 1994 2659 3324 3989
55T-08-35 35 85 904 1809 2714 3619 4524 5429
55T-06-40 40 65 1181 2364 3545 4727 5909 7031
55T-05-45 45 52 1496 2996 4487 5983 7479 8975
55T-04-50 50 42 1807 3615 5423 7231 9038 10846
55T-03-55 55 35 2187 4374 6562 8749 10937 13124

Item Code: Model-65T

We offer a wide range of Model 65T, which have gained lot of popularity among our clients. We can also provide customized range of these pumps to suit the varied requirements of the clients.

Model Plunger Diameter Pressure Kg/cm2 Capacity Liter/Hour

RPM 100 RPM 200 RPM 300 RPM 400 RPM 500 RPM 600
65T-40-20 20 400 342 682 1025 1366 1710 2050
65T-26-25 25 260 534 1068 1602 2136 2670 3204
65T-18-30 30 180 770 1538 2306 3076 3845 4615
65T-13-35 35 130 1048 2094 3140 4188 5234 6280
65T-10-40 40 100 1368 2734 4102 5470 6836 8204
65T-08-45 45 80 1730 3460 5190 6922 8652 10382
65T-06-50 50 60 2136 4272 6410 8546 10682 12820

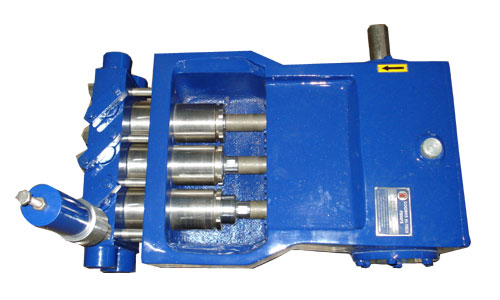

Item Code: Model-75T

The model 75T is available in plunger diameter from 20 to 70 and pressure from 590 kg/ cm2 to 46 respectively. These pumps have increased capacity to throw water from 402(RPM) liter / hour to 29613(600) liter/ hour.

Model Plunger Diameter Pressure Kg/cm2 Capacity Liter/Hour

RPM 100 RPM 200 RPM 300 RPM 400 RPM 500 RPM 600
75T-59-20 20 590 402 805 1208 1611 2014 2417
75T-37-15 25 375 629 1259 1888 2518 3147 3777
75T-26-20 30 265 906 1813 2719 3626 4532 5435
75T-19-25 35 190 1233 2467 3701 4935 6169 7403
75T-14-30 40 145 1611 3223 4834 6446 8058 9669
75T-11-35 45 115 2039 4079 6119 9158 10198 12238
75T-09-40 50 95 2518 5036 7554 10072 12590 15109
75T-07-45 55 75 3047 6094 9141 12188 15235 18282
75T-06-50 60 65 3626 7252 10878 14504 18130 21757
75T-05-55 65 52 4255 8511 12767 17022 21278 25534
75T-04-70 70 46 4935 9871 14806 19742 24678 29613

Item Code: Model-100T

We are providing different model under the Model 100 T, which are 95-20, 40-30, 22-40, 15-50 and many more. We have various diameter and pressure load capacity with different RPM capacities in liter / hour. These pumps can further be customized to suit the varied requirements of the clients.

Model Plunger Diameter Pressure Kg/cm2 Capacity Liter/Hour

RPM 100 RPM 200 RPM 300 RPM 400 RPM 500 RPM 600
100T-95-20 20 950 537 1074 1611 2148 2148 3223
100T-40-30 30 410 1208 2417 3626 4834 4834 7252
100T-22-40 40 220 2148 4297 6446 8595 8595 12893
100T-15-50 50 150 3357 6715 10072 13430 13430 20145
100T-10-60 60 100 4834 9669 14504 19339 19339 19009
100T-07-70 70 75 6580 13161 19742 26323 26323 39485
100T-06-75 75 65 7554 15109 22663 30218 30218 45327
100T-05-80 80 55 8595 17190 25786 34381 34381 51572

Item Code: Model-150T

Our range of High Pressure Triplex Pumps has been appreciated in the market due to varied range of plunger diameter and pressure load capacity to help our client for different applications. These are available in 100 RPM to 600 RPM. To fulfill the diverse requirements of the clients, we can develop these pumps within due time frame.

Model Plunger Diameter Pressure Kg/cm2 Capacity Liter/Hour

RPM 100 RPM 200 RPM 300 RPM 400 RPM 500 RPM 600
150T-95-20 20 925 806 1611 2417 3223 4029 4835
150T-40-30 30 415 1813 3626 5439 7252 9065 10878
150T-22-40 40 225 3223 6446 8595 12892 16115 19338
150T-15-50 50 150 5036 10072 15109 20145 25181 30218
150T-10-60 60 100 7252 14505 21757 29009 36262 43514
150T-07-70 70 70 9871 19743 29614 39482 49356 59228
150T-05-80 80 50 12893 25786 25786 51572 64465 77359

Our highly competent High Pressure triplex pumps are suitable in varied hydrostatic testing, vessel testing, pipe testing, high pressure accumulator charging and tube testing. These consist design engineering, effective service values, and require minimum maintenance cost. The standard capacity and pressure of these pumps are:

Capacity Pressure
26 LPH to 51572 LPH 0 kg/cm 2 to 1600 kg/cm 2

Power End:

Power Frame: Have a rugged CI crankcase designed with heavy cross-section to handle necessary loads. Further, these have adequate openings for easy maintenance
Crankshaft: Their crankshafts are made from nickel chrome moly forged bars and grounded & hardened to ensure fine tolerances
Main Bearings: Consist heavy duty taper roller bearings
Connecting Rod: Consist forged connecting rods, small end with bush bearing & big end with shell bearing are used in them
Cross head: These heads are machined from alloy steel & hardened and grounded to fine tolerances

Fluid End:

Their valves are assembled from one side i.e. from the top of the head only. The valve sets are not fitted by pressing them. Therefore, the valves can be easily inserted & removed. Further, the valves & valve sets can easily be reconditioned at our own factory
Designs of the valves and staffing boxes are simple and it enables us in their easy and swift assembly & disassembly
The staffing boxes can be easily removed from the plungers & can be replaced with spare sets. At our repair unit, these removed staffing boxes can be repaired or reconditioned
Wetted parts of these pumps are made from various types of materials of construction. Hence, these remain fit for a wide range of applications and with varied liquid
